BRF210F

Certifications & Compliance

PCI PTS 6.x, compliant with PCI P2PE, EMVCo L1 Contactless & L2 Contactless security requirements to protect your transactions and reduce your compliance costs.

Modular Payment Solution

Available either standalone or paired with the SCR200F and an optional SKP200F for an unbeatable unattended payment solution.

Sizing Options

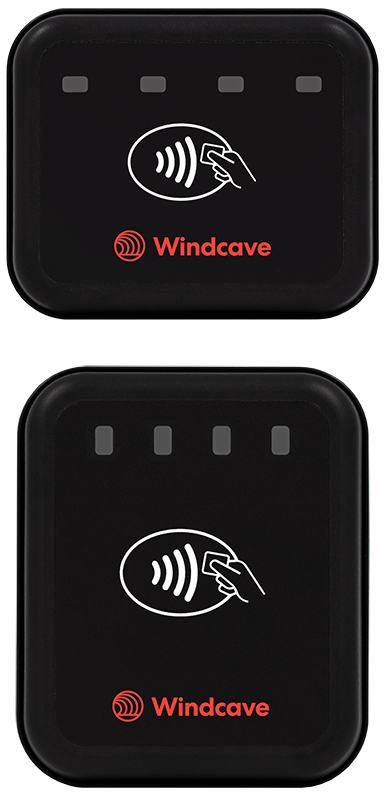

Options for a horizontal or vertical form factor, for the easiest possible integration into your existing solution.

LED Interface

Four LEDs enable visual feedback, communicating the status of contactless payments.

area-grey

Specification


area-grey

Card Readers

Contactless


Human Interface

4 x Card Detection Indicators


Audio

Buzzer


Connectivity

RS232


Dimensions

98 x 81 x 20mm (Antenna)

80 x 56 x 25mm (Controller)


Power Supply

9 - 45V DC


Weight

375g (13 oz)


Power Saving

Low Power Card Detect (LPCD)

Ultra low power mode


Operating Humidity

85% non condensing at 40 °C / 104 °F


Storage Temperature

-30 °C / -22 °F to 85 °C / 185 °F


Operating Temperature

-25 °C / -13 °F to 75 °C / 167 °F


IP Rating / IK Rating

IP 66 / IK 10
